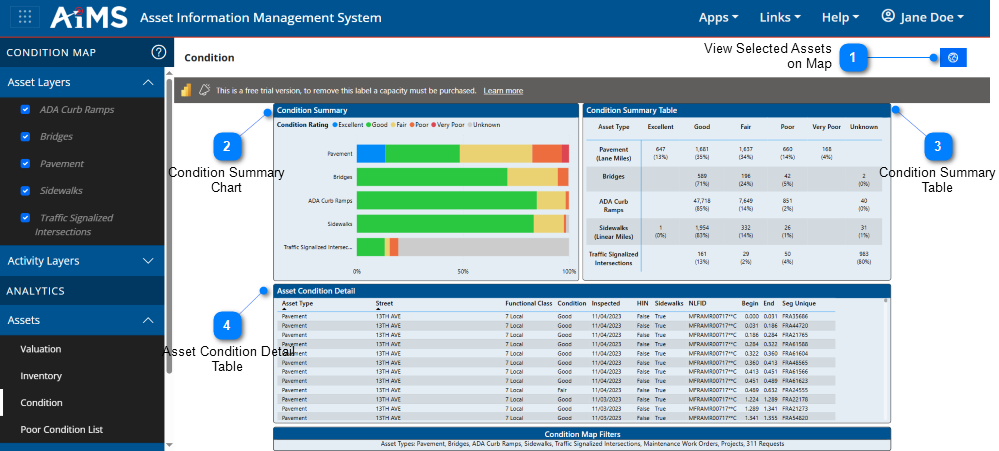

Condition Report

View Selected Assets on Map

•Select one or more records (assets) from the Asset Condition Details table. NOTE: To select multiple records, hold down the Ctrl key while you left-click various records.

•Click the View Selected Assets on Map icon.

•Another tab opens showing a map with a pop-up dialog on top, indicating the number of features that will be displayed, based on the report specifications. NOTE: An error message appears if no visual data is available; you will not see a map.

•Close the dialog box to see the map. You may have to zoom in to see the selected features. NOTE: The map is limited to showing up to 10,000 of the selected records.

Condition Summary Chart

This chart displays the condition levels for each type of asset.

•To filter by an asset type, click on the name of the asset type on the left side of the chart.

•To filter by a condition, click on the condition at the top of the chart.

•To filter by a type/condition combination, select the corresponding bar in the chart.

Condition Summary Table

This table shows the number of assets that fall under each condition rating for each asset type. To filter the report using this table, click any row, column, or cell in the table.

Asset Condition Detail Table

This table shows records for each asset and is filtered when categories are selected in the Condition Summary chart or table.

•To view records from this table in more detail, right-click on the desired row and select Drill through > Explore Asset Details from the pop-up menu.

•This opens a new Explore Assets Details page with detailed information about the attributes of the chosen asset.

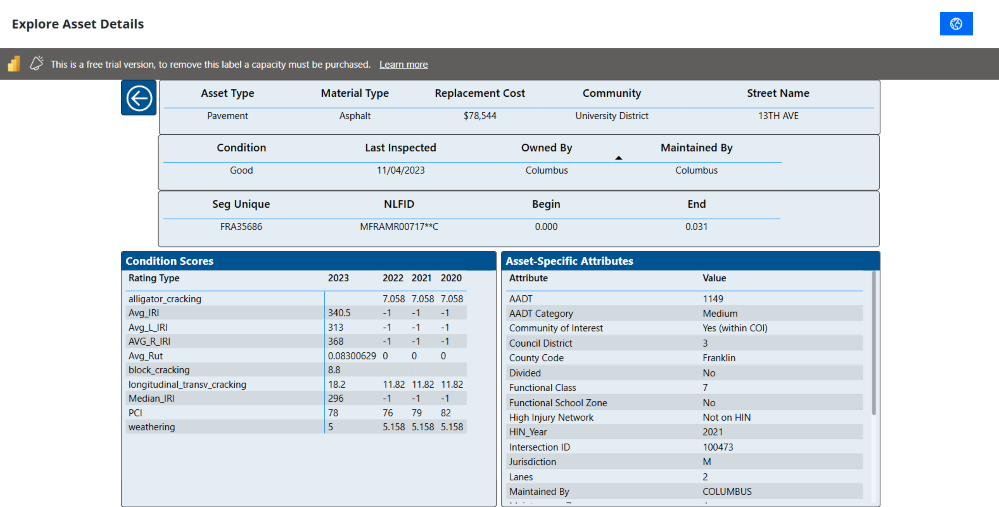

•The following illustration shows what happens when you right-click a row of the Asset Condition Detail table with the Seg Unique value of FRA35686.

•There is also a blue icon in the upper-right corner that allows you to view the asset on a map.

•Click the large back-arrow icon in the upper-left corner of the Explore Asset  Details page to return to the full report.
