Navigation: Make a Map > Work with General Tools >

RAS Street Viewer

The RAS (Roadway Asset Service) Viewer tool is an external application provided by City of Columbus. It displays images of any location within the City of Columbus boundary. If you need access to areas outside of this boundary, use the Panorama View or Google StreetView tool.

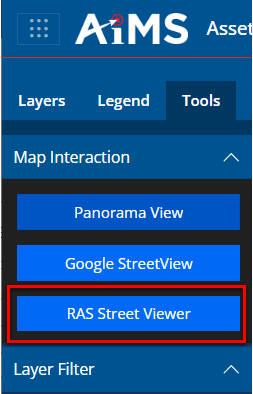

1.Click RAS Street Viewer and then move the mouse. The cursor changes to a giant, black "+" sign.

2.Move the cursor at a location on the map and click.

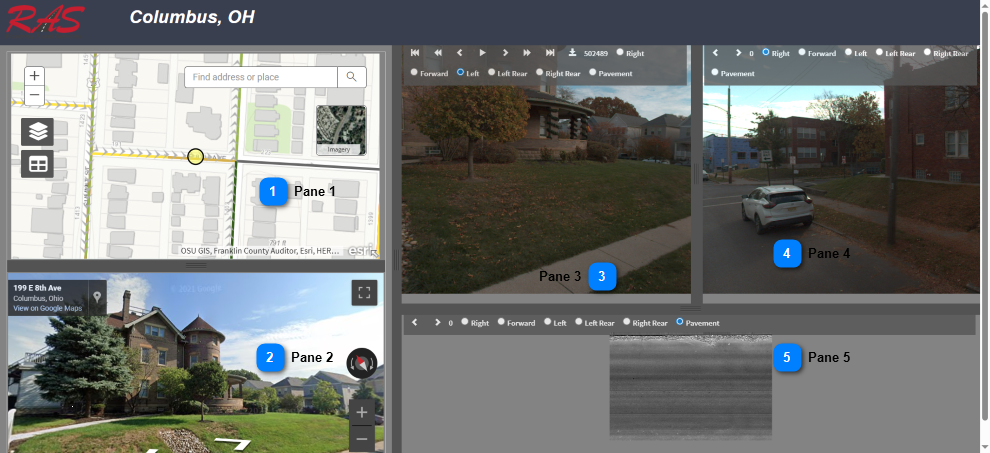

3.The RAS Street Viewer opens in another window or browser tab. The different panes are identified beneath the illustration.

	Pane 1
	Map view of the location you selected. You can zoom in or out, display different layers, turn on and off the Google street view.

	Pane 2
	Google street view of the location you selected.

	Pane 3
	Left camera view of the location you selected.

	Pane 4
	Right camera view of the location you selected.

	Pane 5
	View of the pavement condition.

4.To exit the RAS Viewer, simply close its browser tab or window and return to the map.
